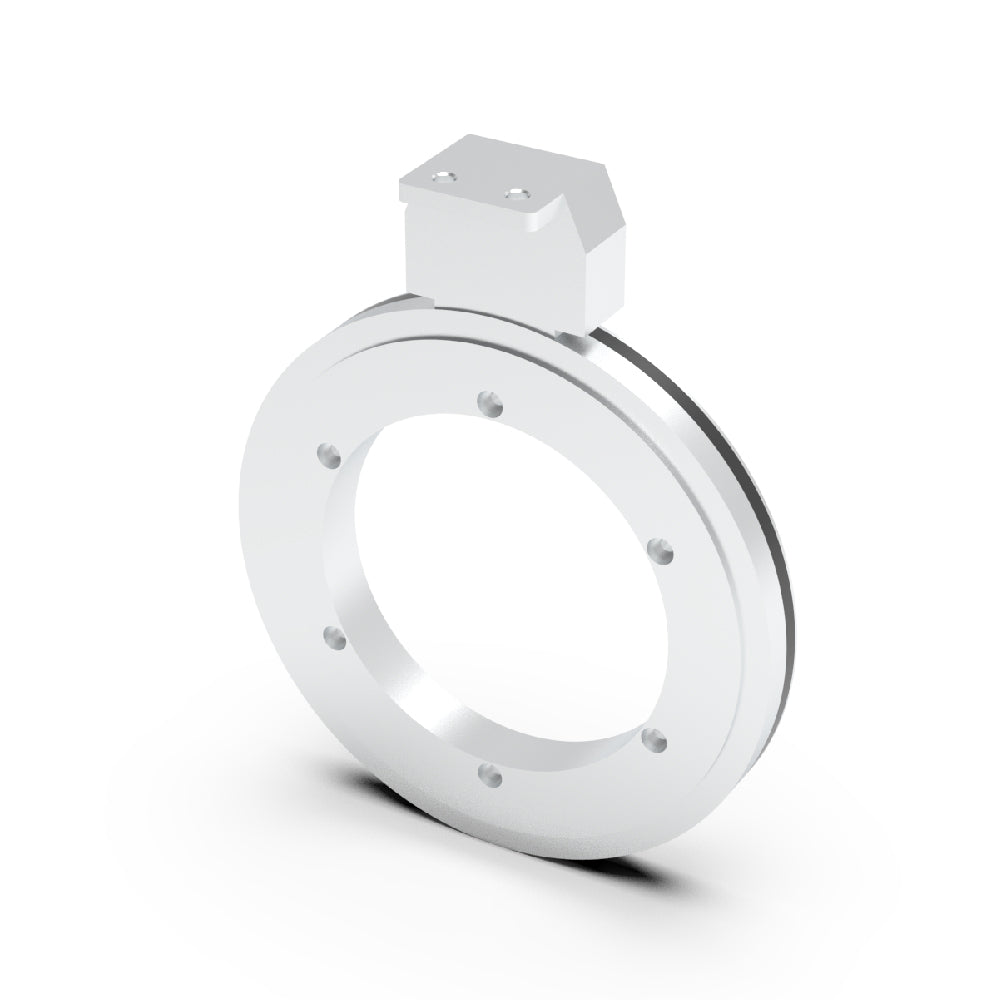

FTH Series Bearingless Magnetic Induction Rotary Encoder
$0.00
customers are viewing this product
| Mechanical Parameters | |
|---|---|
| Storage Temperature | -35℃~95℃ |
| Operating Temperature | -20℃~85℃ |
| Max. Speed | 3000r/min |
| Shock Resistance | 1000m/s2（X,Y,Z directions, 3 times each, 11 ms duration each time） |
| Vibration Resistance | 100m/s2（50~2000Hz, X,Y,Z directions, 2h each） |
| Weight | About 300g |
| Protection Rating | IP67 |
| Electrical Parameters | |
|---|---|
| Supply Voltage | DC 5 ±5％ |
| Output Method | Differential output |
| Maximum Response Frequency | 10Khz |
| Maximum Current Consumption | ≤50mA |
| Resolution | 1000PPR |
