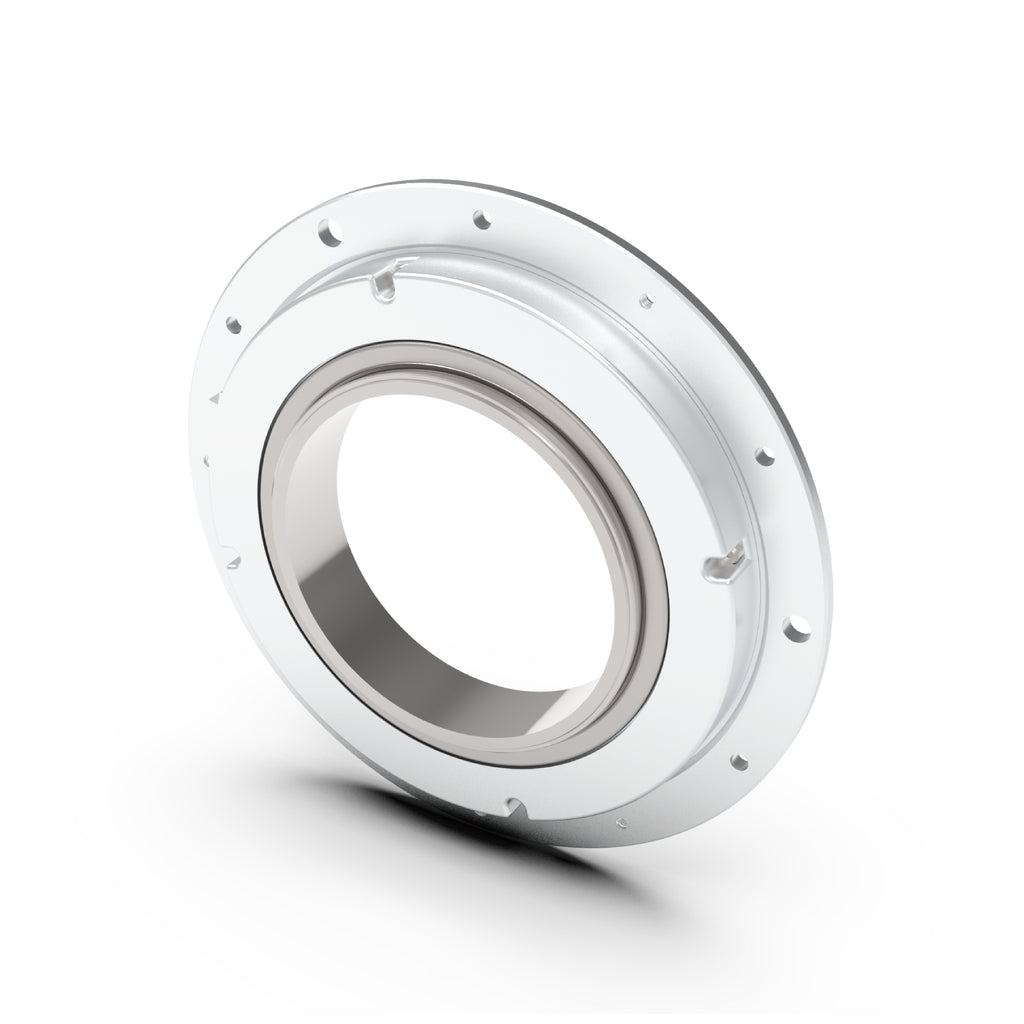

FT256 Series Bearingless Optical Rotary Encoder
$0.00
customers are viewing this product
| Mechanical Parameters | |
|---|---|
| Allowable Angular Acceleration | 10000（rad/s2） |
| Starting Torque | 5x102 |
| Max. Speed | 4000r/min |
| Shock Resistance | 980m/s2（X,Y,Z directions, 2 times each, 6 ms duration each time） |
| Vibration Resistance | 98m/s2（50~2000Hz, X,Y,Z directions, 2h each） |
| Weight | About 2000g |
| Protection Rating | IP40 |
| Electrical Parameters | |
|---|---|
| Supply Voltage | DC 5 ±5％ |
| Output Method | Long line drive output |
| Maximum Response Frequency | 136.6Khz |
| Maximum Current Consumption | 80mA Long line drive output 120mA Other |
| Resolution | 2048PPR |
| Rise/Fall Time | 200ns Differential output |
